Rings Page

All the rings input parameters comes inside this page.

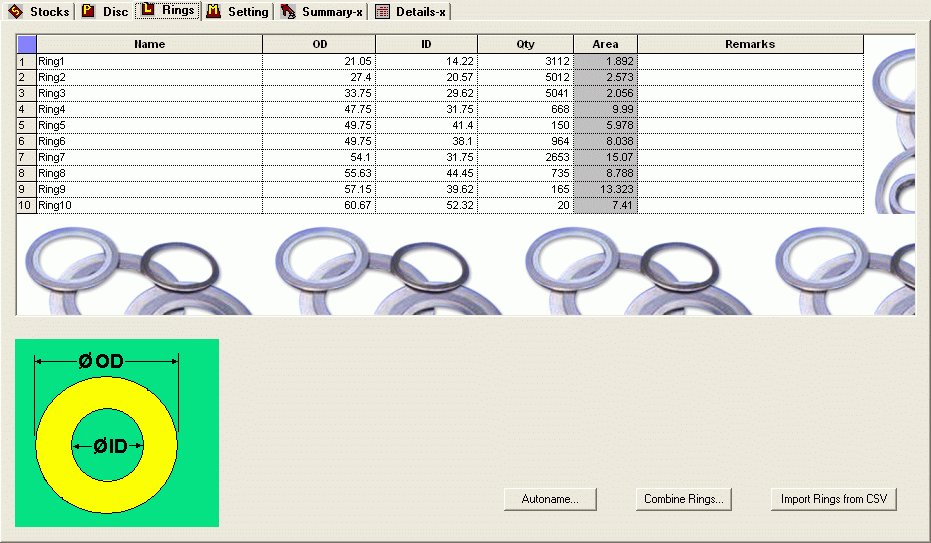

PLUS Rings : Input page for rings


Name Each ring should have unique name. (It also consider disc too.)
OD Outer diameter of the ring.
ID Inner diameter of the ring.
Qty Specify required quantity for rings to be nest.
Material Specify material for rings if you are working with multiple material.
Thickness Thickness of the rings.
Remarks Additional data for rings can be enter here.
Autoname This is used to generate name automatically for disc. (Auoname)
Combine rings This option is used to combine disc of same diameter. (Combine Rings/ Disc)
Import rings from CSV... This is the way you can import rings/ data from CSV file.
