Material Database:

In PLUS Slitting every material can be associated with a picture, Section perimeter, cross sectional area and Mass per unit length. That picture is shown in the Stock page, Slit page, Inventory dialog and in RTF report.

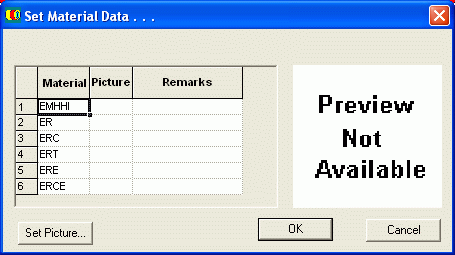

After pressing the 'Set Material Data' in inventory dialog, the following dialog appears. For the material select the picture. You can add or delete the material rows to remove unwanted materials.


Name of the material. this will be used in the inventory and everywhere.
Remarks Add additional information using remarks column.

To set a picture to material, if the desired picture is not available in the list.

Cancel any change made to the material database.
