You can customize the amount of detail and the layout of your RTF Output using the Tools->RTF Output Settings menu or toolbar menu. You can select different items from the dialog to be shown in the report.

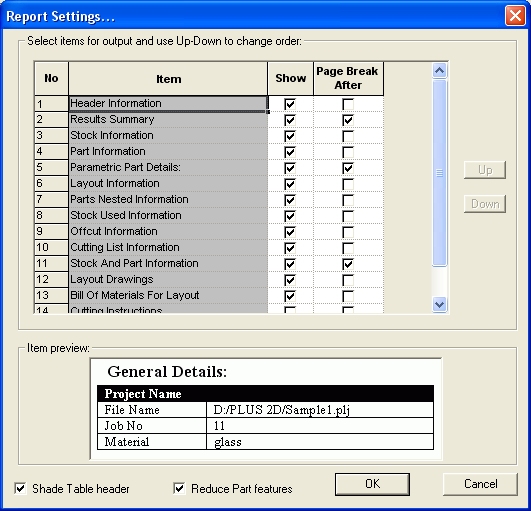

You can see the different items, that can be selected in the grid of the report settings... dialog, shown below. To see the preview of each item just click on the row, you will get the preview of that items in 'Item Preview' area. Also to change the order of output items in the file select the desired row and use 'Up' and 'Down' button to shift it.
Also if you want to add shading in the header of item table just mark the check box 'Shade Table Header'.
The meaning of the items listed is given below.elow.
Header Information: Gives general information such as filename, customer name, Id etc and Job No.
Stock Information: Gives detailed information about the stocks.

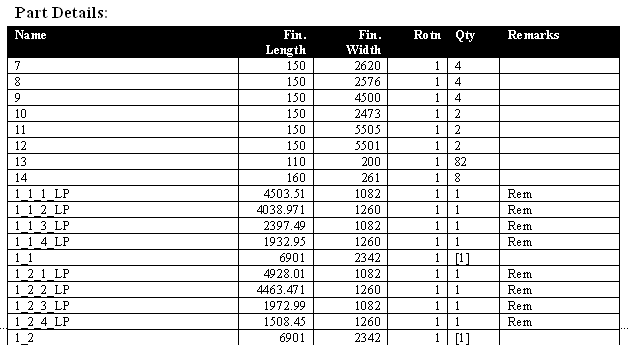

Part Information: Gives detailed information about the Parts.
Large Parts Split Info: Gives detailed information about the joints required to make the part, Along with a table showing Cut No, Cut Type, Dim, Rest.

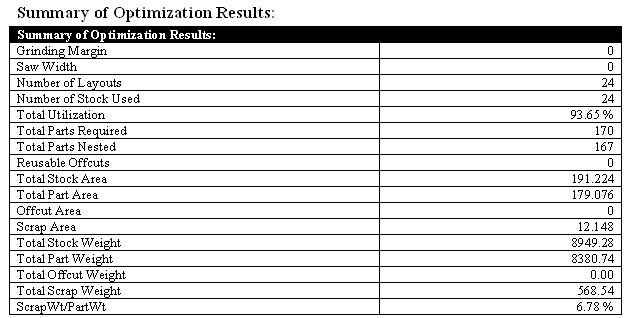

Summary Results: Gives Overall Summary of the Optimization Results.

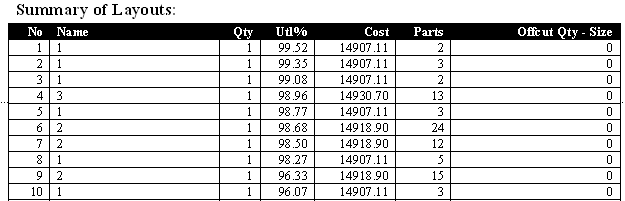

Layout Information: Gives detailed information about the Layouts with Stock Used, Parts involved, Offcuts made along with Cost and Utilization Percentage.

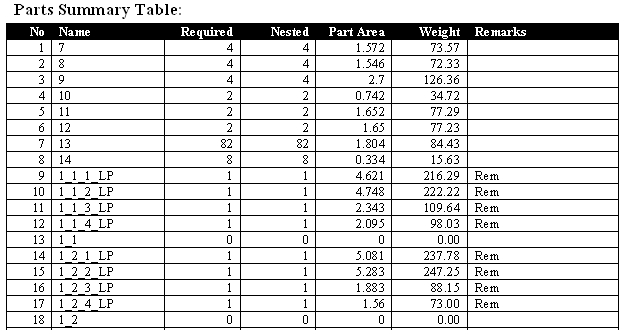

Part Used Information: Gives detailed information about the Parts needed and parts nested.

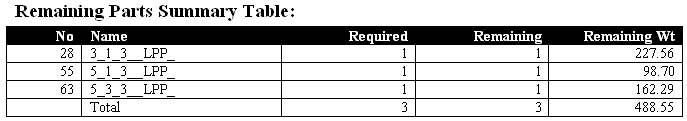

Remaining Parts Summary Table: Gives detailed information about the parts that couldn't be Nested.

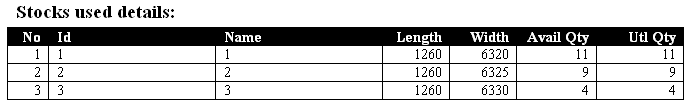

Stock Used Information: Gives detailed information about the Stocks available and Stocks Used.

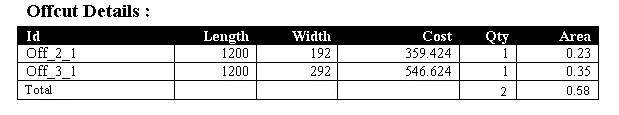

Offuct Details: Its gives the detail information of offcut generated during optimization.

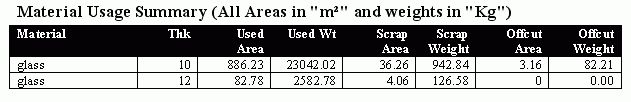

Material Usage Summary : Its gives the detail information of material used during nesting of parts.

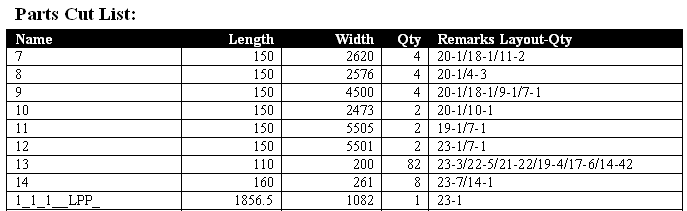

Cutting List Information: Gives detailed information about the Parts, Part Dimension and Occurrence of the part in different layouts, for instance Part 12, of size 150x5501 is found in Layouts 23 (quantity 1) and in Layout 7 (quantity 1).

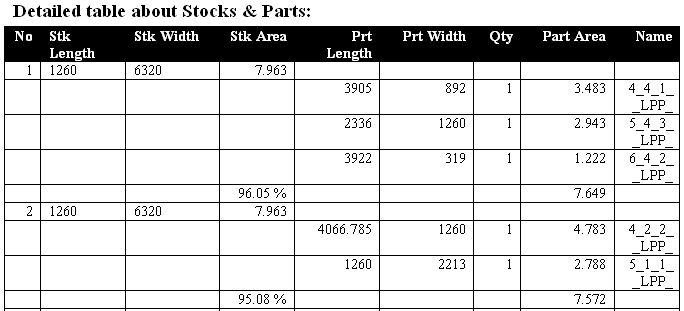

Stock And Part Information: Gives detailed information about stocks used to make layout and parts in the Layouts along with stock and part dimension & utilization percentage.

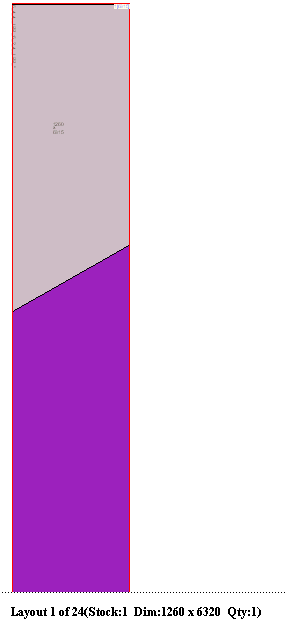

Layout Drawings: Displays Layout Drawing along with stock details. fig below shows First of 24 layouts made. The layout has to be cut on Stock 1 of dimension 1260x6320 and has to be cut once.

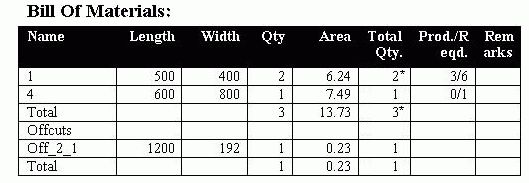

Bill Of Materials For Layout: Below Each layout, Bill Of Material For that layout will be displayed. And if part quantity is finished upto this layout then it is denoted by ' * ' on quantities head. (Check total quantity column)
Cutting Instructions For Layout: Displays Various Knife Positions For Each Layout.
Show : By clicking on this , the selected items will be displayed on RTF report.
Page Break After : To add a page break after selected item.
