Digitizing Software - PLUS Replicam : Digitizing Software to Replicate Templates

PLUS Replicam  – Digitizing software that helps you generate accurate drawings of complicated shapes, quickly from digital images. It is an essential tool to generate accurate CAD drawings for CNC cutting from digital images. Start with a photograph of your template, calibrate the image in PLUS Replicam, trace the outline of the shape automatically or manually and save it as a DXF file.

PLUS Replicam can take you from the Templates to Cutting table in Minutes. It integrates in your workflow, as you can use the DXF output for further activities like order entry, production planning and optimization and gain a competitive edge.

Application Areas: PLUS Replicam is useful for anyone who is cutting shapes using templates, firmas.

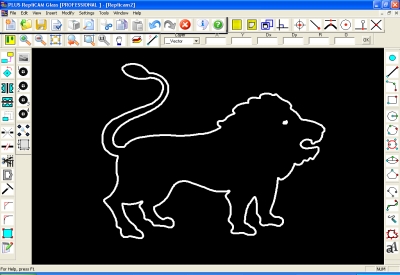

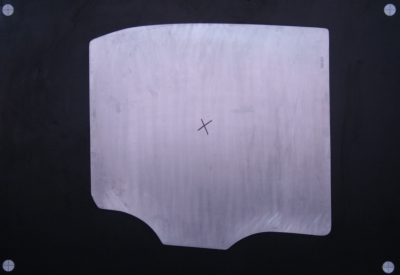

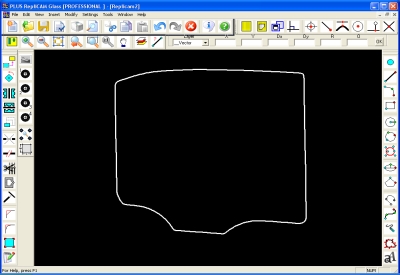

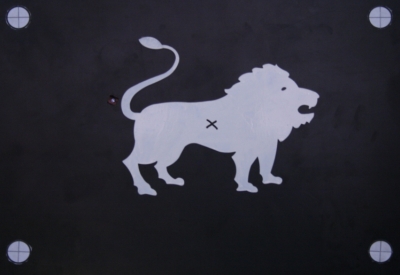

Photograph of Template	CAD output of PLUS - Replicam

PLUS Replicam : Digitizing Software to Replicate Templates

Features:

• Trace shape outline automatically or manually using drawing entities like Lines, Arcs, Polylines and Splines.
• Convert into a smooth tangential contour suitable for CNC.
• Auto Corner to automatically join segments at the corners.
• Add CNC attributes for the cuts like break out cuts, cutting speed, pressure, order, tool, etc.
• Digitize complicated shapes, holes and cutouts.
• Draw on separate layers for drilling, grinding, etc.
• Inquiry tools to verify dimensions in addition to drafting features like fillet, chamfer, edit, scale, rotate, mirror, snaps.

Advantages:

• Ensures accuracy while saving time and effort.
• Flexibility, there is no limits on size of templates.
• No investment on expensive digitizer or digitizing table.
• No need to transport and archive templates from customers. Save logistic cost.
• Reuse templates without storing them. Template drawings can be archived and retrieved for later use.
• Fast transition from data to cutting table. Integrated with PLUS 2D.
• No Learning curve, ready to use.
